0.5AMP LCP Displayport Usb 9 Pin Connector Mini USB Socket 90 Degree SMT DIP Solder 1u" Plating

Name: 05AMP LCP Displayport Usb 9 Pin Connector Mini USB Socket 90 Degree SMT DIP Solder 1uquot Plating
Brand: Jinze
Price: 1 USD

China 0.5AMP LCP Displayport Usb 9 Pin Connector Mini USB Socket 90 Degree SMT DIP Solder 1u" Plating wholesale

Brand Name : Jinze

Model Number : DP06B-LBA20-RHA

Certification : SGS/ROHS

Place of Origin : China

MOQ : 1000pcs

Price : Negotiation

Payment Terms : T/T

Supply Ability : 80000pcs/ Day

Delivery Time : 15-25 Days

Packaging Details : Reel Packaging

Material : LCP UL 94 V-0

Color : Black

Gender : Receptacle (Female)

Application : Information Technology Sector/ Automotive Industry/ Gaming Consoles

Number of Contacts : 20 Contact

Number of Ports : 1 Port

Current Rating : 0.5AMP Max

Mounting Angle : Right Angle

Mounting Style : PCB Mount

Factory Pack Quanity : 330pcs per Reel

OEM/ODM : Yes

Contact Now

LCP Displayport DP Connectors 90 Degree SMT DIP Solder 1u" Plating

Specifications

Hosuing	LCP UL94V-0 Black
Cover	LCP UL94V-0 Black
Contact	C2680 T=0.20mm
Shield	C2680 T=0.40mm
Terminal Finish	Gold 1u" Plating on Contact Area
	Matte Tin 80u" plating on solder tail
	Under Nickel Plating 50u" Min Over All
Shell	Cu 100u"+ Ni 100u" Plated
Current Rating	0.5A Max
Voltage Rating	40V
Contact Resistance	40 mΩ Max
Insulation Resistance	Unmated 100mΩ Min. At 500 VDC
	Mated 10 mΩ Min. At 150 VDC
Dielectric Withstanding Voltage	500 V AC/1 Minute
Durabilty	10000 Cycles
Operation Temperature	-20°C~+85°C
Storage Temperature	-20°C~+65°C

Images:

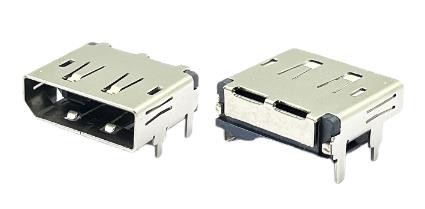

0.5AMP LCP Displayport Usb 9 Pin Connector Mini USB Socket 90 Degree SMT DIP Solder 1u" Plating

Drawings:

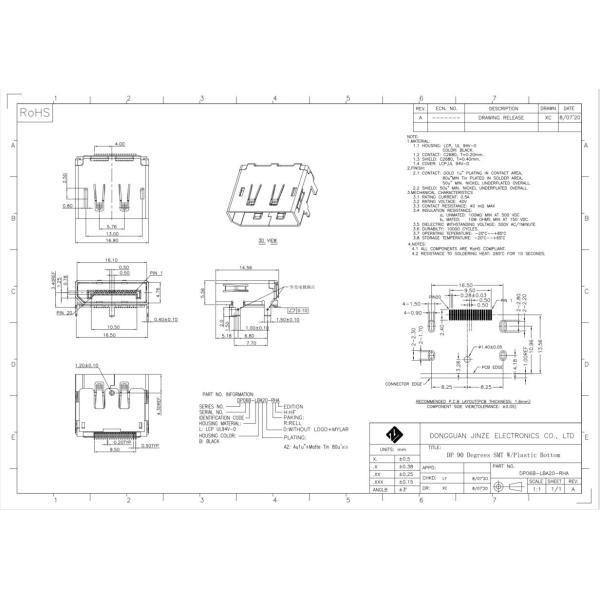

0.5AMP LCP Displayport Usb 9 Pin Connector Mini USB Socket 90 Degree SMT DIP Solder 1u" Plating

DP06B-LBA20-RHA.pdf, if you need the Drawing, pls download it

Features and Benefits

• PCB space saving footprint
• D-shaped chamfered interface provides polarization
• Fully shielded against EMI and RFI emissions
• Detent locks and latch holes for secure mating connection
• PCB alignment pegs
• PCB solder pegs for in creased rigidity and retention to PCB

Product Application Information

These DisplayPort receptacle connectors form part of the DisplayPort interconnection system which is used for delivering high definition video of up to 10.8 Gbit/s and audio signals. Applications include games consoles, monitors, personal computers, projectors, set-top boxes, TV displays and work stations

Is this socket protected against interference?

Yes, this socket is fully shielded for protection against EMI (electromagnetic interference) and RFI (radio frequency interference), so you can rest assured you'll get reliable signal transmission.
